reportree

|doc-badge|

.. |doc-badge| image:: https://github.com/protivinsky/reportree/actions/workflows/builddoc.yaml/badge.svg :alt: doc :target: https://protivinsky.github.io/reportree/index.html

ReporTree: Nested HTML reports for Matplotlib

ReporTree produces nested static HTML reports with buttons to navigate through many nested pages.

.. warning:: The old approach that relied on loading local content via javascript was removed and all the nested subpages are stored in a single html file, even with charts embedded as base64 in version 0.0.9.

The documentation has not been fully updated yet. The previous version 0.0.4 fully supports the old approach.
I will update the package to version 0.1.0 after fixing documentation and cleanup.

Older version

The package can easily produce reports with many nested levels and hundreds of Matplotlib plots.

.. warning:: The selection of pages in nested reports works correctly only when served from the webserver (even the Python one works fine for local development, python -m http.server).

The selection is done via Javascript and the targets are loaded on the fly. When the reports are
displayed locally, different files are considered as Cross-Origin access and the loading is blocked
by the browser. Single page reports (i.e. Leaves) work fine.

This issue can be solved by using Mozilla Firefox for local browsing with changing
`security.fileuri.strict_origin_policy` to `false` (in `about:config`).

Basic example

.. code:: python

import reportree as rt
import seaborn as sns
import matplotlib.pyplot as plt
import numpy as np


fig1, ax1 = plt.subplots()
sns.lineplot(x=np.arange(10), y=np.arange(10), marker='o', ax=ax1, color='red')
ax1.set_title('Upward')

fig2, ax2 = plt.subplots()
sns.lineplot(x=np.arange(10), y=np.arange(10, 0, -1), marker='o', ax=ax2, color='blue')
ax2.set_title('Downward')

l1 = rt.Leaf([fig1, fig2], title='Leaf example')
l1.save('/tmp/example1')

l2 = rt.Leaf(fig1, title='Only upward')
l3 = rt.Leaf(fig2, title='Only downward')

b1 = rt.Branch([l1, l2, l3], title='Branch example')
b1.save('/tmp/example2')

b2 = rt.Branch([rt.Branch([b1, l1]), l2, l3, b1], title='Nested example')
b2.save('/tmp/example3')

The code produces following reports:

Leaf example ............

.. image:: https://raw.githubusercontent.com/protivinsky/reportree/main/doc/images/example1.png :width: 1000 :alt: Example 1

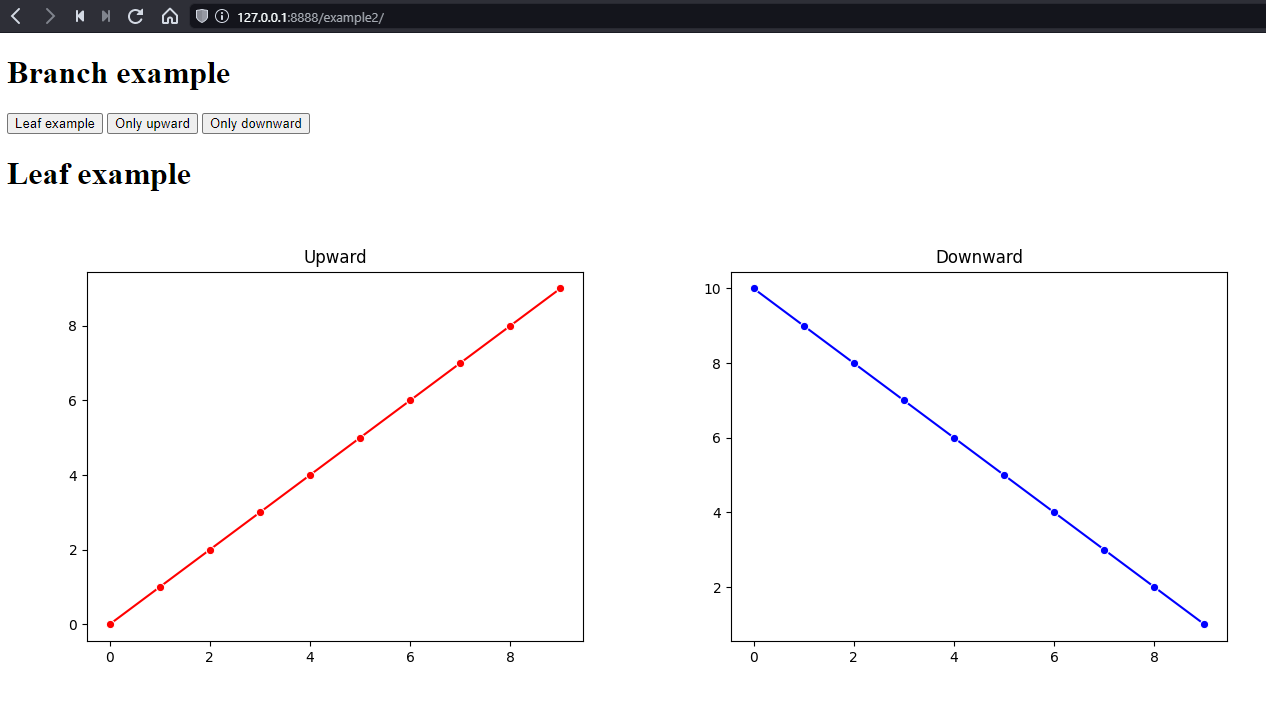

Branch example ..............

.. image:: https://raw.githubusercontent.com/protivinsky/reportree/main/doc/images/example2.png :width: 1000 :alt: Example 2

Nested example ..............

.. image:: https://raw.githubusercontent.com/protivinsky/reportree/main/doc/images/example3.png :width: 1000 :alt: Example 3
