🎨 dsh-draw

🧊 FROZEN since 2026-10-05 — only real breakages are fixed. Prefer the better-adopted alternative recorded below.

• 1024 store channel: npm i -g dsh1024 once, then dsh1024 plugin --profile web add dsh-draw (counts toward the deepseek1024.com install ranking).

Unified static-image generation routing for DeepSeek Harness.

One tool, many engines — health-aware fallback, durable results, counted usage.

English · 简体中文 · Español · Português · हिन्दी

dsh plugin --profile <name> add dsh-draw

📖 Ecosystem knowledge base — measured data, not marketing: plugin development guide · plugin-selection data · maintenance criteria.

Install & uninstall

• git channel (latest main): dsh plugin --profile web add github:PerryLink/dsh-draw — the prepare script builds with production dependencies only.
• npm channel (published releases): dsh plugin --profile web add dsh-draw.
• tarball channel: pnpm pack in this repo, then dsh plugin --profile web add ./dsh-draw-<version>.tgz.
• uninstall: dsh plugin --profile web remove dsh-draw (or remove the row from the profile patch).

If pnpm reports ERR_PNPM_IGNORED_BUILDS for this package (esbuild's harmless platform-binary validation), add allowBuilds: { esbuild: true } to your pnpm-workspace.yaml — the dsh CLI prints the exact snippet.

⭐ 如果它帮到了你

这个插件是 DSH 插件家族的一员（95 个，全部 Apache-2.0）。如果你在用，给个 star —— 它不会解锁任何功能，但会让下一个人在搜索里更容易找到它。

English: part of a 95 plugin family for DeepSeek Harness. If it is useful, a star helps the next person find it — nothing is gated behind it.

What is dsh-draw?

Unified static-image generation routing for DeepSeek Harness.

One tool, many engines — health-aware fallback, durable results, counted usage.

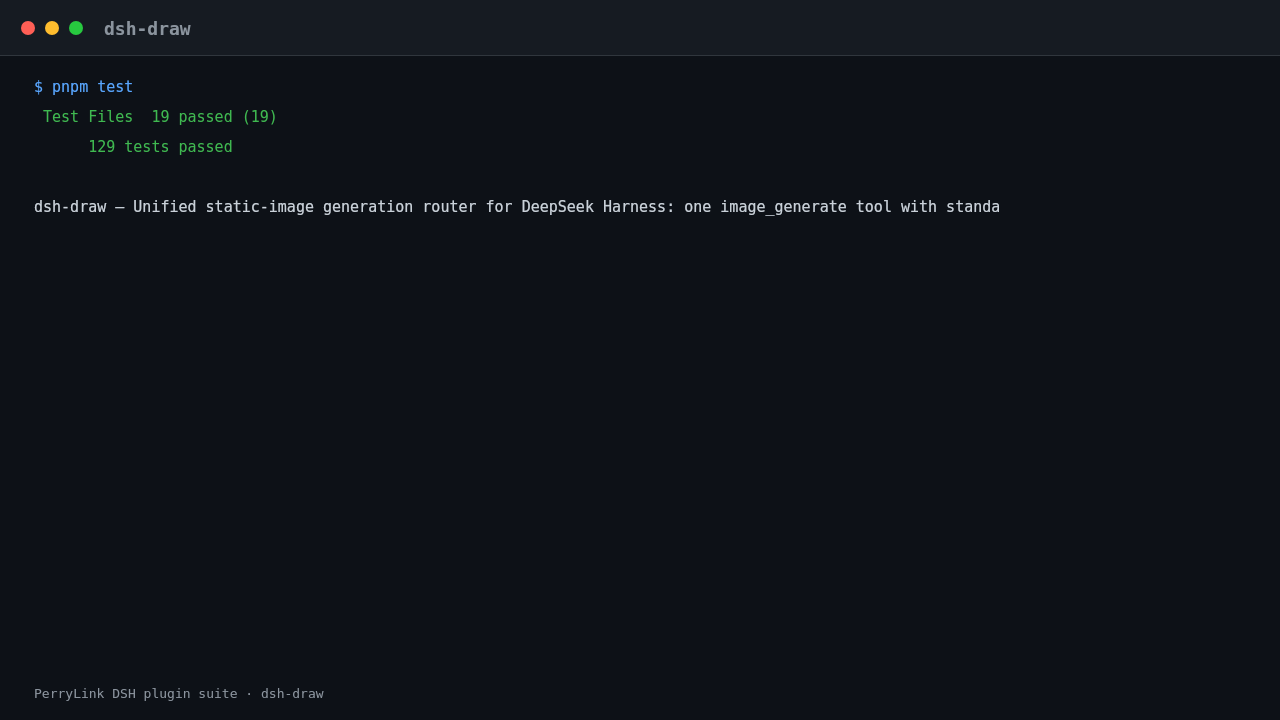

The same run, animated.

Maintenance status: 🧊 FROZEN

Frozen on 2026-10-05. No new features. This package still works, and it is not retired — but it no longer receives feature work. Only a genuine breakage will be fixed.

Maintainers treat this capability as one where better-adopted alternatives now exist, so effort has moved elsewhere. The comparison below was measured on 2026-10-05 and is recorded so nobody has to redo it.

	package	weekly downloads
this package	dsh-draw	973
better-adopted alternative	dsh-image-gen	7,216
another alternative	@goodandready/dsh-image-gen	4,822

Why the alternative leads. dsh-image-gen provides Gemini, OpenAI, Seedream, DashScope and a local ComfyUI in one plugin.

Compatibility. declares no dsh peers, so the compatibility guard never blocks it.

👉 For new work, prefer dsh-image-gen. Existing installs keep working unchanged; nothing is being removed.

Full evidence, including the host-version compatibility matrix: dsh-plugin-supersession-review-20261005.md.

Comparison

measured 2026-10-05 · from the README's FROZEN maintenance table (npm weekly downloads)

Compatibility

Surface	Status
Harness	DeepSeek Harness dsh-v0.2.1-alpha.1 (compat declared for 0.1.5-rc.2)
Node	^22.19.0 || >=24.0.0
Engines	Any OpenAI-compatible images endpoint; presets for OpenAI Images (gpt-image-1) and Zhipu CogView (cogview-3-flash)
Surfaces	Host image_generate tool + web result card + Plugins settings tab

The browser half rides the cordis Context and the published client packages (dsh-client-ui-slots, dsh-client-ui-settings, dsh-client-ui-tool, dsh-client-locale, dsh-client-connection); it no longer depends on the removed dsh-client-runtime package (the tool-call block is read through a local structural contract), so the client surface also lines up with 0.1.2-rc.1 hosts. 0.1.2-rc.1 (adapted 2026-09-02): the session envelope keeps its ignorable field for stored-log read compatibility only - Session.append still cannot stamp it, so audit-gate behavior is unchanged. Verified 2026-09-06 against the dsh-v0.1.7-alpha.1 master checkout (full gate chain + profile install smoke). 0.1.6-alpha.2 (adapted 2026-09-18): Session.append's third parameter exists only for surface-eligible event types and is a SurfaceIntent, never an ignorable envelope, so draw/generated (a non-surface type) is still not written on this line — quota is counted in memory per session and resets when the session restarts, exactly as the "Quota durability" note below describes. Verified 2026-09-18 (dual typecheck rulers + the full suite + self-contained/artifacts/readme gates). 0.1.7-rc.2 (adapted 2026-10-04): the client tool.call.toolview contract split its owner into three stages (preparing / start / result), and a keyed card is now dispatched while the arguments are still streaming. The result card therefore also renders the in-flight row for those earlier stages — an occupied keyed slot never reaches the host's own generic row, so answering a prepared stage with nothing blanked the line for the whole streaming window. Nothing else changed: the settled card, the accounting line, and regenerate behave exactly as before. Verified 2026-09-23 (dual typecheck rulers + the full suite + the new host-contract gate).

What you get

dsh-draw gives the harness one unified image_generate tool with standard parameters (prompt/size/count/quality/style/engine) that are translated per engine:

• Multi-engine routing — a config-driven chain (OpenAI Images, Zhipu CogView, or any OpenAI-compatible endpoint) walked top-down with health-aware fallback: consecutive failures push an engine into cooldown, and the next healthy engine serves the call.
• Durable results — generated images are saved as workspace attachments (content-addressed, under the harness's attachment policy) and returned as canonical file references.
• Quota accounting — per-session caps on generation calls and image bytes, folded from the durable session log and enforced before engine spend and before storage.
• Credentials as references — engine API keys are environment-variable names resolved per call through the official ctx.credentials seam; literal keys are never stored in configuration and never logged.
• Web surfaces — an in-conversation result card (images, engine, quota, one-click regenerate) and a Plugins settings tab (engine chain, credential status, probes, quota limits).

model                           harness
  │ image_generate {prompt, ...} ──▶ validate ──▶ quota check ──▶ router
  │                                  openai ──(fail)──▶ cogview ──▶ images
  │ ◀── canonical JSON + image blocks (durable attachment refs)
  │                       └── draw/generated session event (quota + audit)

Quick start

dsh plugin --profile web add github:PerryLink/dsh-draw

# 1. install the bundle into your profile
dsh plugin --profile web add github:PerryLink/dsh-draw

# or from npm (published releases)
dsh plugin --profile web add dsh-draw

# 2. provide the engine keys as credential references (environment variables)
#    OPENAI_API_KEY and/or ZHIPU_API_KEY — never in the profile patch

# 3. restart and verify the row
dsh --profile web --dump-config | grep -A2 'id: dsh-draw'

Then ask the agent to draw:

> Draw a 1536x1024 landscape of a lighthouse at dusk, vivid style.

Configuration

All tunables are Schemastery Config fields (changeable from cordis.yml). An id-targeted override replaces the whole row — restate every key you need. cordis.patch.yml documents each key inline.

Key	Default	Meaning
engines	OpenAI + CogView presets	Ordered engine chain, walked top-down with fallback; each entry: id, baseUrl (no credentials), model, apiKeyRef (env-var name), provider (openai/replicate/fal, default openai), enabled, sizeMap, qualitySupported, styleSupported, responseFormat (b64_json/url), imageMediaType
defaultEngine	openai	Engine id the router prefers; must name a configured engine
requestTimeoutMs	120000	Per-generation HTTP timeout (1000..600000)
maxImagesPerCall	4	Cap on images one call may produce (1..10)
maxPromptLength	4000	Prompt length cap in characters (1..32000)
maxGenerationsPerSession	200	Per-session generation-call cap (1..100000)
maxBytesPerSession	209715200	Per-session image-byte cap (1048576..4294967296)
failureThreshold	2	Consecutive failures before an engine enters cooldown (1..10)
cooldownMs	60000	Engine cooldown after the threshold trips (1000..3600000)

Example override in your profile patch:

- insert:
    - id: dsh-draw
      name: dsh-draw
      config:
        defaultEngine: cogview
        maxImagesPerCall: 2

Tools & surfaces

Surface	Notes
image_generate	Standard parameters; returns canonical JSON (engine/model/size, image references, quota, fallback flag, attempts) plus image content blocks
Result card (tool.call.toolview, key image_generate)	In every stage of the call: an in-flight row while the arguments stream, then images, engine/quota line, and one-click regenerate once it settles (full drawer path: quota + routing + audit)
Settings tab (Plugins → Image generation)	Engine chain, credential status, set/remove API keys (credential references), connectivity probes, quota limits

Permissions & data

• Permissions: the plugin makes outbound HTTPS calls to the configured engine endpoints only; every other surface is read-only. The settings tab's only writes are credential set/remove calls on the official ctx.credentials seam.
• Data: generated images are saved through the official attachment store under the harness's own attachment policy. Quota usage is folded from the draw/generated session events, plus the in-memory fallback ledger on hosts that cannot log those events — nothing else is stored.
• Session log: the draw/generated event records engine, model, standardized request, byte totals, and attachment ids — the audit facts, never the API keys. The event is appended only when the host knows the type or honors the ignorable envelope (probed at mount); on rc.6/rc.7 hosts and the 0.1.2-rc.1 line (whose Session.append cannot stamp the marker and which fails closed on unknown types at read) the payload goes to the in-memory fallback ledger instead, so generating images can no longer make a session refuse to reopen.

Security boundaries

• Credential references, never literals. apiKeyRef names an environment variable; a baseUrl embedding credentials fails the load loudly.
• Sanitized display. URLs, probe notes, and error text are redacted (userinfo passwords, credential query values, bearer tokens, JWTs) before any display or log.
• Quota before spend. Generation and byte caps are checked before engine calls and before attachment storage; exhausted sessions fail fast without spending engine credits.
• Fail loud, fall back deliberately. Malformed responses surface as structured errors; a failing engine is skipped after its cooldown threshold, and a fully exhausted chain returns the complete attempt record instead of pretending success.

Known limitations

• Image models only. No video, audio, or edit endpoints; no vision understanding.
• Engine compatibility. Three vocabularies are supported through the provider seam: openai (the POST /images/generations shape), replicate (prediction create + poll), and fal (the fal.run queue). Provider-specific extras beyond prompt/size/count (e.g. seed, scheduler) are out of scope.
• Cost awareness is structural. The plugin counts calls and bytes but does not know engine pricing — pair with dsh-budget for cost governance.
• Quota durability on rc.6/rc.7, 0.1.2-rc.1 and 0.1.6-alpha.2. On hosts whose session log cannot carry draw/generated (static event whitelist, no ignorable envelope; 0.1.2-rc.1 cannot stamp the marker and fails closed on unknown event types at read; on 0.1.6-alpha.2 the append's third parameter is a SurfaceIntent for surface types only, so a non-surface event cannot be marked), quota stays exact for the live session from the in-memory fallback ledger but resets on restart; durable accounting resumes on hosts with a plugin event surface. The first refused commit warns once, so a degraded session is visible instead of silent.

Development

pnpm install        # node ^22.19 || >=24
pnpm run typecheck  # tsc: src + tests against the local harness checkout
pnpm run typecheck:ci  # tsc against the published 0.1.7-rc.2 faces (no paths)
pnpm test           # vitest: 19 spec files (scripted transport, real Context/Session/ToolRuntime)
pnpm run build      # tsc declarations + tsdown bundles (lib/)
pnpm run verify:self-contained  # dependency specs resolve from the registry
pnpm run verify:host-contract   # the host tool-view contract still matches what this plugin declares
pnpm run verify:artifacts       # host ESM face + typert manifest + browser bundle + config files
pnpm pack           # the published tarball

Topics

dsh, dsh-plugin, deepseek-harness, deepseek, cordis, image-generation, openai-images, cogview, zhipu, text-to-image

Contributors

• @PerryLink — creator and maintainer: engine router, drawer, quota accounting, Typert wire vocabulary, browser half, and the five-language docs.
• @Mohei-Muun — reported the draw/generated session-log unload bug on rc.7 hosts (#2), which led to the adaptive event gate.
