pdflinkcheck

pdflinkcheck

A purpose-built tool for comprehensive analysis of hyperlinks and GoTo links within PDF documents. Users may choose between three different PDF analysis libraries. Use the CLI or the GUI or the localhost webapp to leverage this cross-platform PDF hyperlink and navigation analysis toolkit.

📥 Access and Installation

The recommended way to use pdflinkcheck is to either install the CLI with pipx or to download the appropriate latest binary for your system from Releases.

🚀 Release Artifact Files (EXE, PYZ, ELF)

For the most user-typical experience, download the single-file binary matching your OS.

File Type	Primary Use Case	Recommended Launch Method
Executable (.exe, .elf)	GUI	Double-click the file.
PYZ (Python Zip App)	CLI or GUI	Run using your system's python command: python pdflinkcheck-VERSION.pyz --help

Installation via pipx

For an isolated environment where you can access pdflinkcheck from any terminal:

# Ensure you have pipx installed first (if not, run: pip install pipx)
pipx install pdflinkcheck[pdfium,pymupdf]

# On Termux
pipx install pdflinkcheck

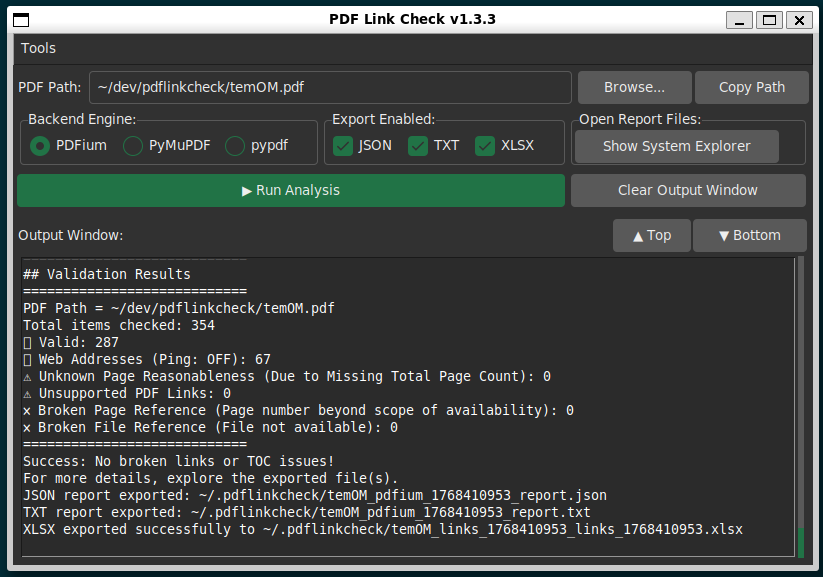

💻 Graphical User Interface (GUI)

The tool can be run as simple cross-platform graphical interface (Tkinter).

Launching the GUI

Ways to launch the GUI interface:

• Implicit Launch: Run the tool or file with no arguments, subcommands, or flags. (Note: PyInstaller builds use the --windowed (or -noconsole) flag, except for on Termux.)
• Explicit Command: Use the dedicated GUI subcommand (pdflinkcheck gui).

🚀 CLI Usage

The core functionality is accessed via the analyze command.

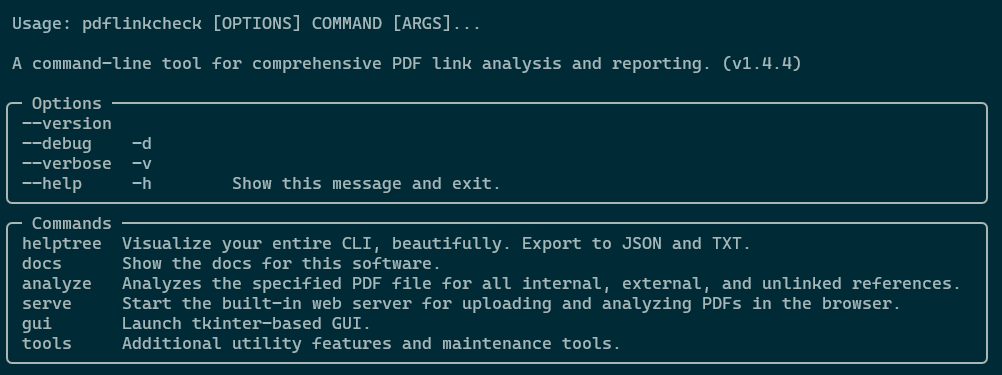

pdflinkcheck --help:

See the pdflinkcheck Typer CLI structure.

pdflinkcheck helptree

`helptree` is a utility function for Typer CLIs, imported from the `typer-helptree` library.

• GitHub: https://github.com/City-of-Memphis-Wastewater/typer-helptree
• PyPI: https://pypi.org/project/typer-helptree/

Available Commands

Command	Description
pdflinkcheck analyze	Analyzes a PDF file for links and validates their reasonableness.
pdflinkcheck gui	Explicitly launch the Graphical User Interface.
pdflinkcheck docs	Access documentation, including the README and AGPLv3+ license.
pdflinkcheck serve	Serve a basic local web app which uses only the Python standard library.
pdflinkcheck tools	Access additional tools, like --clear-cache.

analyze Command Options

Option	Description	Default
<PDF_PATH>	Required. The path to the PDF file to analyze.	N/A
--pdf-library / -p	Select engine: pymupdf or pypdf.	pypdf
--format / -f	Export to JSON, TXT, XLSX, and/or None to suppress file output.	JSON

gui Command Options

Option	Description	Default
--auto-close INTEGER	(For testing/automation only). Delay in milliseconds after which the GUI window will automatically close.	0 (Disabled)

Example Runs

# Analyze a document, show all links, and save the report as XLSX, JSON, and TXT
pdflinkcheck analyze "TE Maxson WWTF O&M Manual.pdf" --format xlsx -f json -f txt

# Show the GUI for only a moment, like in a build check
pdflinkcheck gui --auto-close 3000

# Show both the LICENSE and README.md docs
pdflinkcheck docs --license --readme

📦 Library Access (Advanced)

For developers importing pdflinkcheck into other Python projects, the core analysis functions are exposed directly in the root namespace. The various analysis_pdf_* functions each use a different library to extract the target PDF's internal TOC, external links, and metadata.

Function	Library	Description
run_report()	pdflinkcheck	(Primary function) Performs the full analysis, prints to console, and handles file export.
analyze_pdf_pdfium()	pypdfium2	Fast, ~10 mb, Permissively licensed
analyze_pdf_pymupdf()	PyMuPDF	Fast, ~30 mb, AGPL3+ licensed
analyze_pdf_pypdf()	pypdf library	Slow, ~2 mb, Permissively licensed

Example:

from pdflinkcheck import ( run_report,
                          analyze_pdf_pymupdf,
                          analyze_pdf_pypdf,
                          analyze_pdf_pdfium,
                          )

file = "document1.pdf"
report_data = run_report(file)
links_pdfium = analyze_pdf_pdfium(file)
links_pypdf = analyze_pdf_pypdf(file)

✨ Features

• Active Link Extraction: Identifies and categorizes all programmed links (External URIs, Internal GoTo/Destinations, Remote Jumps).
• Anchor Text Retrieval: Extracts the visible text corresponding to each link's bounding box.
• Structural TOC: Extracts the PDF's internal Table of Contents (bookmarks/outline).

🥚 Optional REPL‑Friendly GUI Access (Easter Egg)

For users who prefer exploring tools interactively—especially those coming from MATLAB or other REPL‑first environments—pdflinkcheck includes an optional Easter egg that exposes the GUI launcher directly in the library namespace.

This feature is disabled by default and has no effect on normal imports.

Enabling the Easter Egg

Set the environment variable before importing the library:

export PDFLINKCHECK_GUI_EASTEREGG=true

or

import os
os.environ["PDFLINKCHECK_GUI_EASTEREGG"] = "true"

and then

import pdflinkcheck
pdflinkcheck.start_gui()

Accepted values include: true, 1, yes, on (case‑insensitive).

Purpose

This opt‑in behavior is designed to make the library feel welcoming to beginners who are experimenting in a Python REPL for the first time. When enabled, the start_gui() function becomes available at the top level:

pdflinkcheck.start_gui()

If the PDFLINKCHECK_GUI_EASTEREGG environment variable is not set—or if GUI support is unavailable—pdflinkcheck behaves as a normal library with no GUI functions exposed.

⚠️ Compatibility Notes

Termux Compatibility as a Key Goal

A key goal of City-of-Memphis-Wastewater is to release all software as Termux-compatible.

Termux compatibility is important in the modern age, because Android devices are common among technicians, field engineers, and maintenance staff. Android is the most common operating system in the Global South. We aim to produce stable software that can do the most possible good.

Now pdflinkcheck can run on Termux by using the pypdf engine and the pdfium engine. Benefits:

• pypdf-only artifacts, to reduce size to about 6% compared to artifacts that include PyMuPDF.
• Web-stack GUI as an alternative to the Tkinter GUI, which can be run locally on Termux or as a web app.

PDF Library Selection

PyMuPDF is an optional dependency. All testing comparing pypdf and PyMuPDF has shown identical validation performance. However PyMuPDF is much faster. The benefit of pypdf is small size of packages and cross-platform compatibility. We have recently added a PDFium option, which circumvents the AGPL3+.

It is expected that all binaries and artifacts contain PyMuPDF, unless they are built on Android. The GUI and CLI interfaces both allow selection of the library; if PyMuPDF is selected but is not available, the user will be warned.

To install the complete version use one of these options:

pip install "pdflinkcheck[pymupdf]"
pipx install "pdflinkcheck[pdfium]"
uv tool install "pdflinkcheck[pdfium]"
uv add "pdflinkcheck[pdfium]"

Document Compatibility:

Not all PDF files can be processed successfully. This tool is designed primarily for digitally generated (vector-based) PDFs.

Processing may fail or yield incomplete results for:

• Scanned PDFs (images of text) that lack an accessible text layer.
• Encrypted or Password-Protected documents.
• Malformed or non-standard PDF files.

Run from Source (Developers)

git clone http://github.com/city-of-memphis-wastewater/pdflinkcheck.git
cd pdflinkcheck

# To include the PyMuPDF dependency in the installation:
uv sync --extras pdfium --extra pymupdf

# On Termux, to not include PyMuPDF:
uv sync --extra pdfium

# To include developer dependencies:
uv sync --all-extras --group dev

# Run the CLI
uv run python -m pdflinkcheck.cli --help

# Run a basic webapp and Termux-facing browser-based interface
uv run python -m pdflinkcheck.stdlib_server

📜 License Implications (PyMuPDF)

Please see the LICENSE file, the NOTICE file, and the PyMuPDf sourcecode.

Build Type	License Outcome
Core + pypdf	MIT
Core + PDFium	MIT
Core + PyMuPDF	AGPL obligations apply

It is entirely optional to include PyMuPDF as a dependency of pdflinkcheck. Leverage pyproject.toml --extra flags to choose what is included. The source code itself for pdflinkcheck is licensed under the MIT.

Before deploying or modifying this tool for organizational use, especially for internal web services or distribution, please ensure compliance with the PyMuPDG terms.

Because of the strong copyleft AGPLv3+ license associated with PyMuPDF, which is an optional, extra dependency of this project, any version of pdflinkcheck that includes AGPL‑licensed components (such as PyMuPDF) must be distributed as a whole under AGPLv3+. This means that for those versions, anyone who distributes the application — or makes a modified version available over a network — must also provide the complete corresponding source code under the same terms.

Links:

• pdflinkcheck ource code: https://github.com/City-of-Memphis-Wastewater/pdflinkcheck/
• PyMuPDF source code: https://github.com/pymupdf/PyMuPDF/
• pypdfium2 source code: https://github.com/pypdfium2-team/pypdfium2
• pypdf source code: https://github.com/py-pdf/pypdf/

Alternative PDF Link Analysis Solutions

• https://evermap.com/Tutorial-ABM-AutoBookmark-PDF-Link-Checker.asp
• https://www.powermapper.com/products/sortsite/ads/links-link-checker/
• https://bootlin.com/blog/pdf-link-checker/
